Agri‐Ground Cell®

The Agri-Ground Cell® system is an easy-to-install and low maintenance ground stabilisation solution for high traffic areas around equine facilities. Perfect for laneways, bog holes, and erosion-prone areas, this innovative design can be installed directly over dirt, eliminating the need for costly concrete foundations.

Agri-Ground Cell® features

  • Exceptional load-bearing capacity for heavy equine traffic.
  • Free-draining surface that is easy to clean and maintain.
  • Prevents surface erosion in high-traffic zones such as tracks and around troughs.
  • Cost-effective installation with no need for a concrete base.
  • Facilitates rainwater redirection to infiltration zones for improved water management.

Get a quote

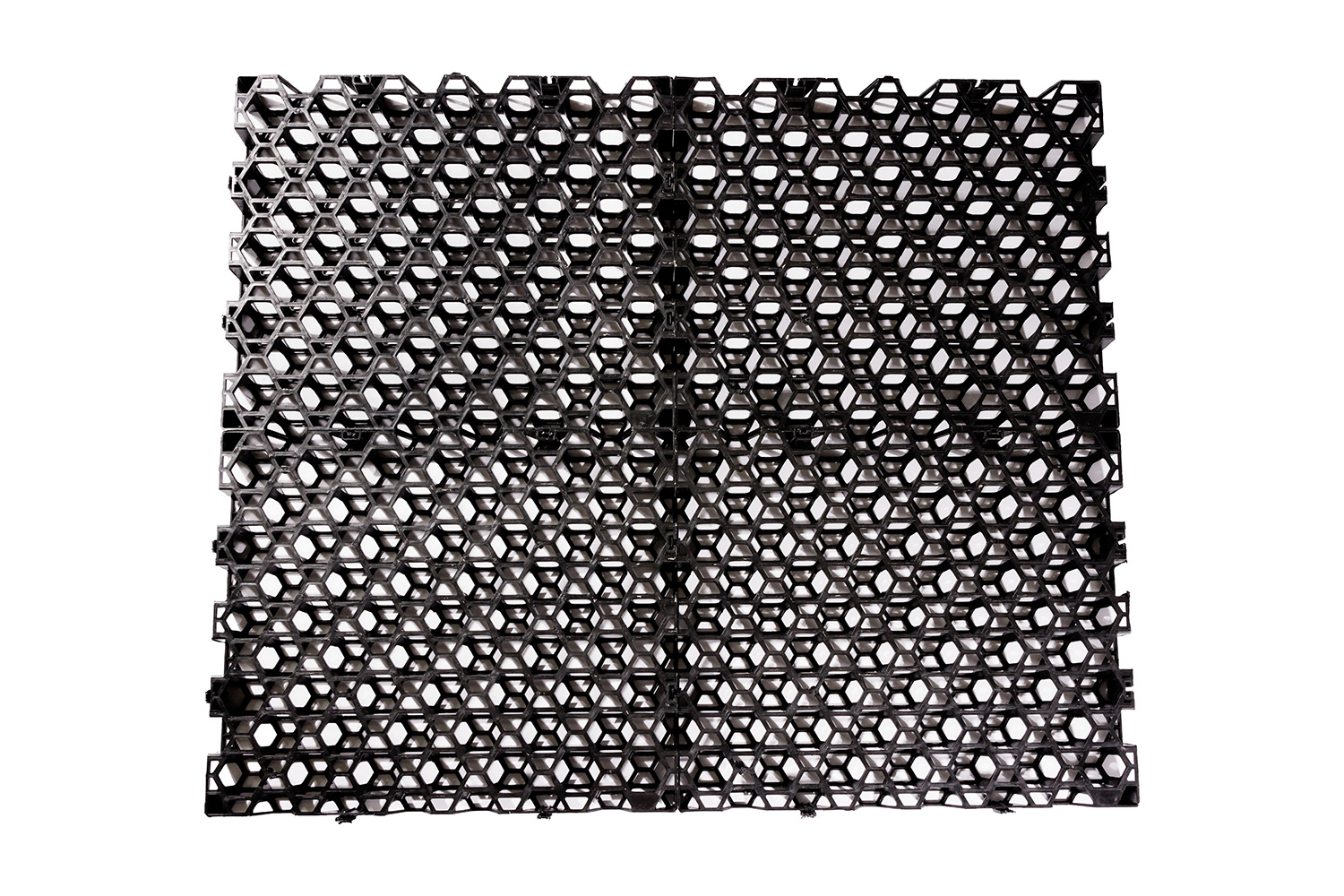

Agri‐Ground Cell® technical specifications

Thickness50mm
Cell Size500mm x 600mm
4 Cells per panel = 1000mm x 1200mm
Material100% Recycled PPE
Crush Strength225t/m2

Benefits of Agri-Ground Cell®

For cost-effective ground stabilisation, the Agri-Ground Cell® can be laid directly over dirt without the added expense of laying concrete first. This keeps the surface very low maintenance. Instead of boggy areas needing constant attention, they may only need top filling every 18 months.

This matting option that minimises horse slips and injuries in particularly unstable areas. Our Agri-Ground Cell® Ezy-Fix system is a heavy duty rubber matting that means you won’t need to worry about surface erosion around pressure points like laneways, breezeways and gates that are frequently used.

SureFoot® Ezy‐Fix System™

The Agri-Ground Cell® Ezy-Fix system is simple to install, maintain and clean, while helping to reduce cross contamination between surfaces. The cells can also be used to collect rainwater and direct it to surface infiltration areas.

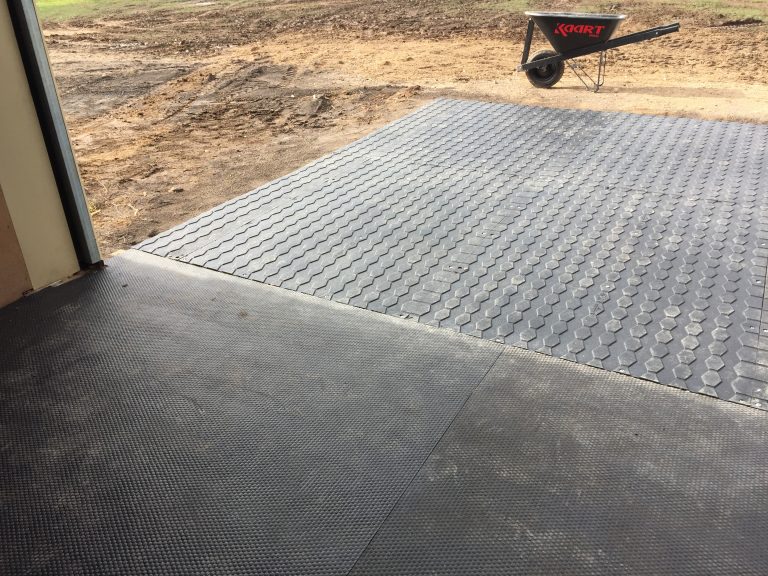

Lay SureFoot® Mat or ProLite® Mat directly over the top of Agri-Ground Cell® to give certain areas more protection and a ‘finished’ look. Consider the SureFoot® Ezy‐Fix System™ for areas that require extra traction and high traffic areas like laneways and gates. You may consider this rubber matting for laneways that experience heavy use.

Where to use Agri-Ground Cell®

  • Laneways
  • Crossovers
  • Wash bays
  • Day yards
  • Stables

What is Agri-Ground Cell® made from?

Our custom designed Agri-Ground Cell® is environmentally friendly, made from selected recycled polypropylene.

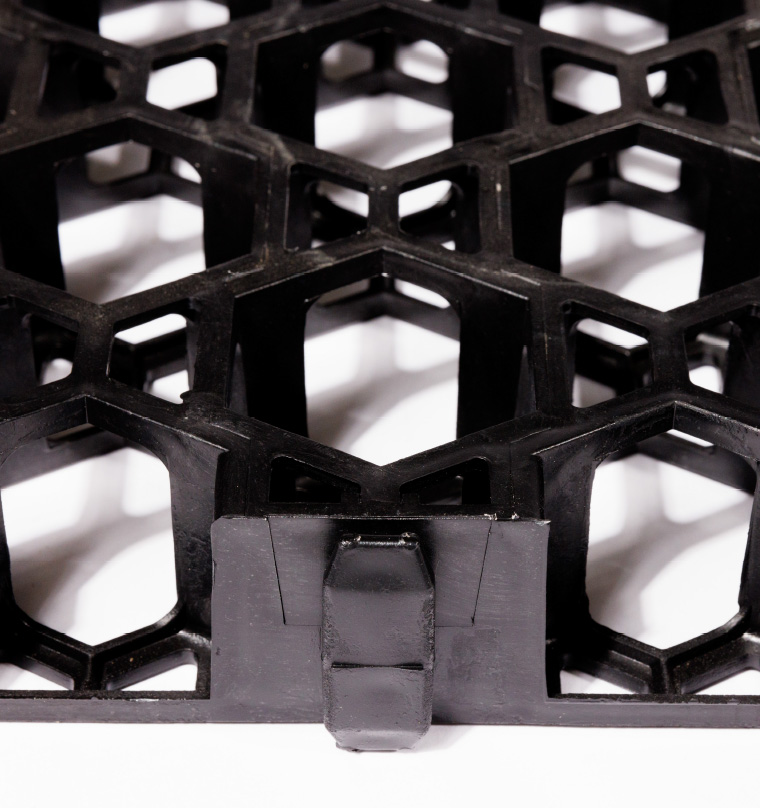

The clever honeycomb design gives it an incredible load bearing capacity, making it practical and durable across a range of applications in equine settings. It’s also lightweight and easy to install, coming in pre-clipped panels.

How to install Agri-Ground Cell®.

  1. Level out the area to be covered.
  2. Cover area with crushed rock or crusher dust, and compact if needed.
  3. Lay out Agri-Ground Cell® one panel at a time, connecting the pre-clipped panels together.
  4. Use a rubber mallet to hit down on clips provided to safely engage panels.
  5. If you need to cut the cell, you may require a reciprocated saw or handsaw.
  6. Fill the cell with crusher dust, sand or soils.
  7. Compact material with compaction plate.
  8. Agri-Ground Cell® is ready to use, or install the Ezy-Fix system.

How to install Agri-Ground Cell® Ezy-Fix System.

  1. Lay out rubber matting over top of ground cell and cut to size with a stanley knife.
  2. Using our specifically designed 150mm x 10mm Auger Screws for secure fixing of rubber mat onto ground cell.

VIEW OUR INSTALLATION GUIDE FOR MORE INFORMATION

Customer reviews of Agri-Ground Cell®

“[1] We contacted several companies about flooring, but we felt they didn’t have the product(s) specific to our purpose. After speaking with a Surefoot® representative we knew they understood the purpose of each application and had the solution to suit our stable…

Now after several months of use, Surefoot® matting’s surfaces have met our expectations. The complex and wash bay is used every day, and I would absolutely recommend Surefoot® to friends and other people.”

McDonald Equestrian

“In an environment where change can often be questioned, this new product is rapidly gaining acceptance by a very discerning group of stakeholders as a result of how well it “wears in” and acknowledgement, or realisation over time, that it is indeed providing an improvement to safety in a high-risk environment.”

Jason Paech – Operations Manager – Morphettville Race Course

Enquire about Agri-Ground Cell®

Explore how the Agri-Ground Cell® system or SureFoot® Ezy‐Fix System™ can help to stabilise boggy or high traffic areas in your equine facility. Our team can walk you through our different rubber mat flooring options designed for the equine industry, advise on pricing, and provide a tailored solution to meet your needs.

Get a quote
